1. Product description:

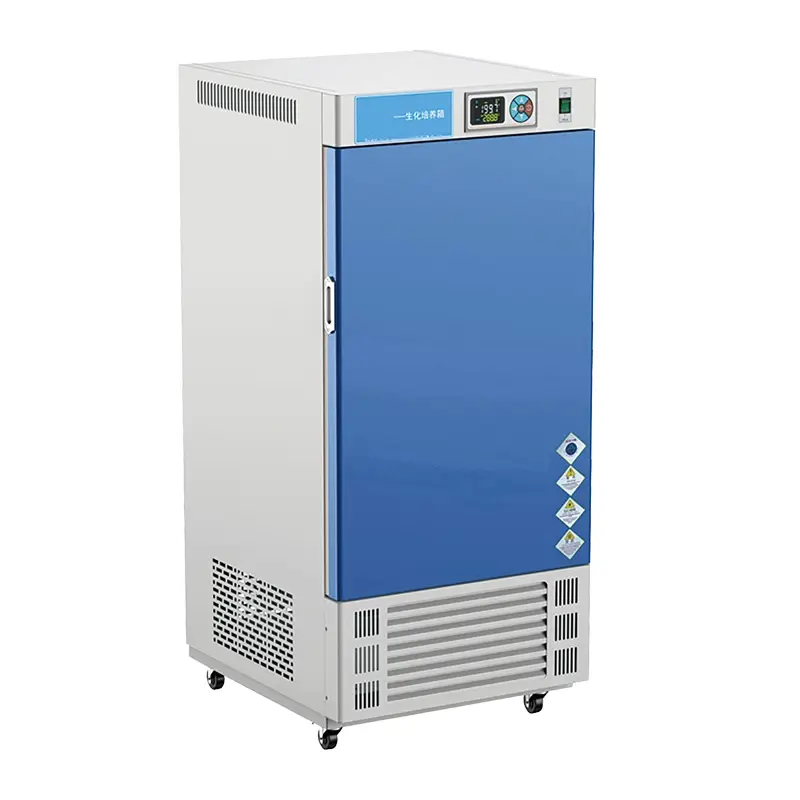

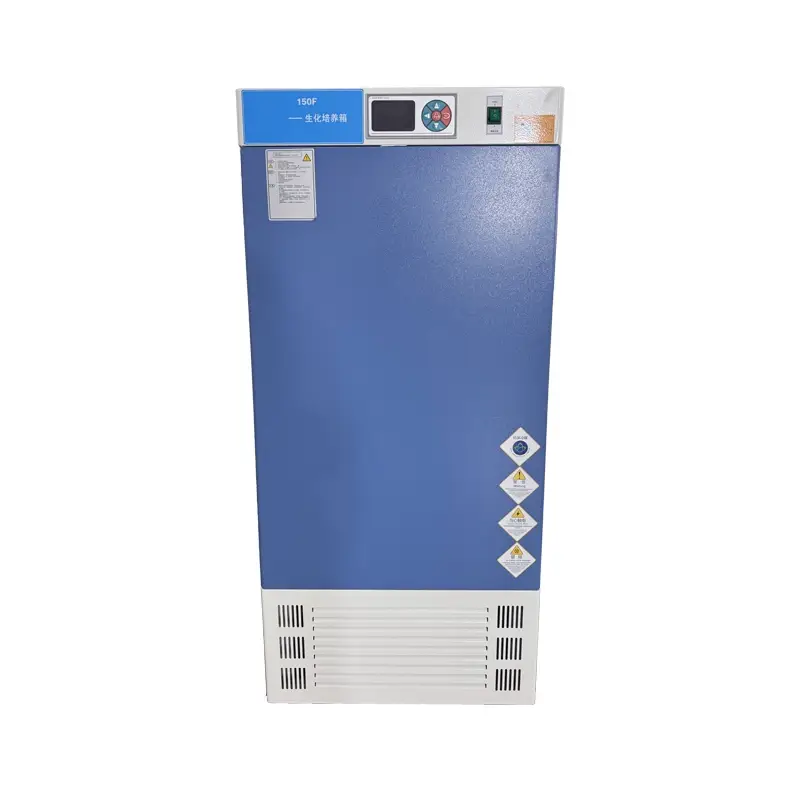

The Mould Incubator is used for environmental protection, anti-epidemic, drug inspection, crop-livestock and aquatic products etc., which is applied in scientific research institutions, college and manufacture department. It is a specialized constant temperature equipment for water analyzing, BOD test, cultivation and storage of bacteria, mold, microorganism, plant and seed.

2. Features:

2.1 Multi-door structure design, built-in large wide Angle glass door, easy for users to observe the test sample without dead Angle.

2.2 Double greenhouse temperature control system, greatly improve the uniformity of temperature inside the chamber.

2.3 Cooling capacity intelligent control system, automatically adjust the refrigeration power of the compressor, and has the function of cooling capacity reflux to help the compressor Rapid cooling, prolong the service of the compressor.

2.4 Standard large screen LCD display, multiple groups of data in one screen display, menu operation interface, easy to understand, easy to operate.

2.5 Ultraviolet sterilization system, equipped with ULTRAVIOLET lamp, sterilization efficiency up to 95%.

2.6 Adopt international brand compressor, self-developed compressor cooling system, can effectively extend the service life of the compressor.

2.7 The use of JAKEL pipe flow circulation fan, unique design of the air duct, to create a good air circulation convection, to ensure the temperature uniformity.

2.8 PID control mode, temperature control precision fluctuation is small, with timing function, the maximum time set value 99 hours 59 minutes.

2.9 Committed to the world environmental health initiative, using 134A fluorine-free refrigerant, high efficiency, energy saving, environmental protection.

3. Configuration

3.1 The standard configuration

Tank: Stainless steel (ASTM304)

Sterilization: UV sterilization lamp (wavelength: 254nm, power: 8W)

Internal: galvanized stainless steel shelf (70L to 150L: 2 pieces, 250L to 500L: 3 pieces)

Body: cold rolled steel plate forming spray plastic

Meter: large LCD color screen controller

Plug: optional

Installation: All models are equipped with lockable mobile casters (2 with lock, 2 directional)

3.2 Options

Intelligent program controller

Independent temperature limiting controller

BOD socket

Embedded printer

RS485 interface and dedicated software

The test of 25 mm / 50 mm /100mm holes
