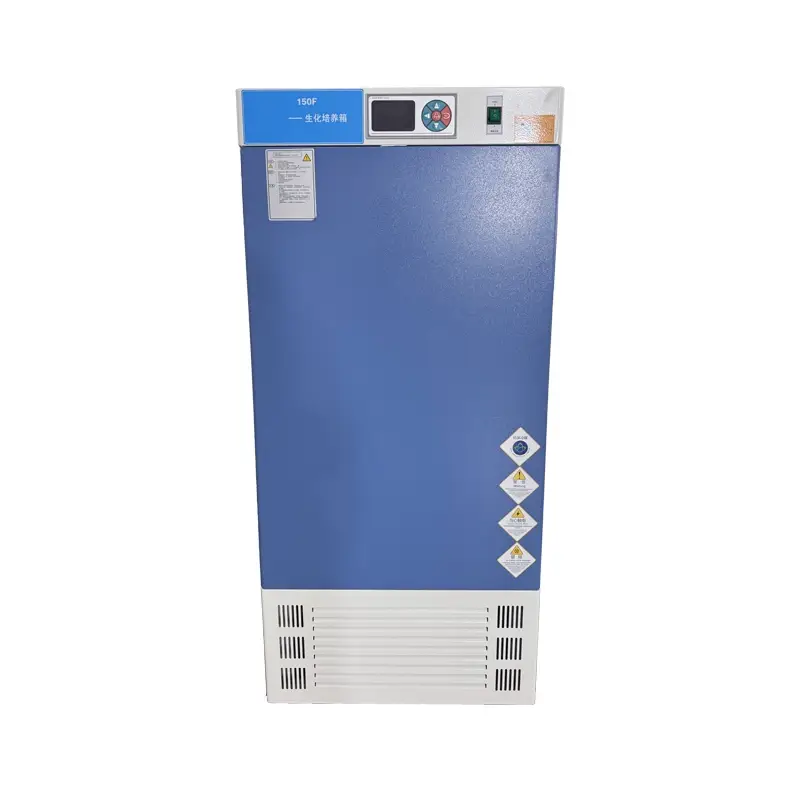

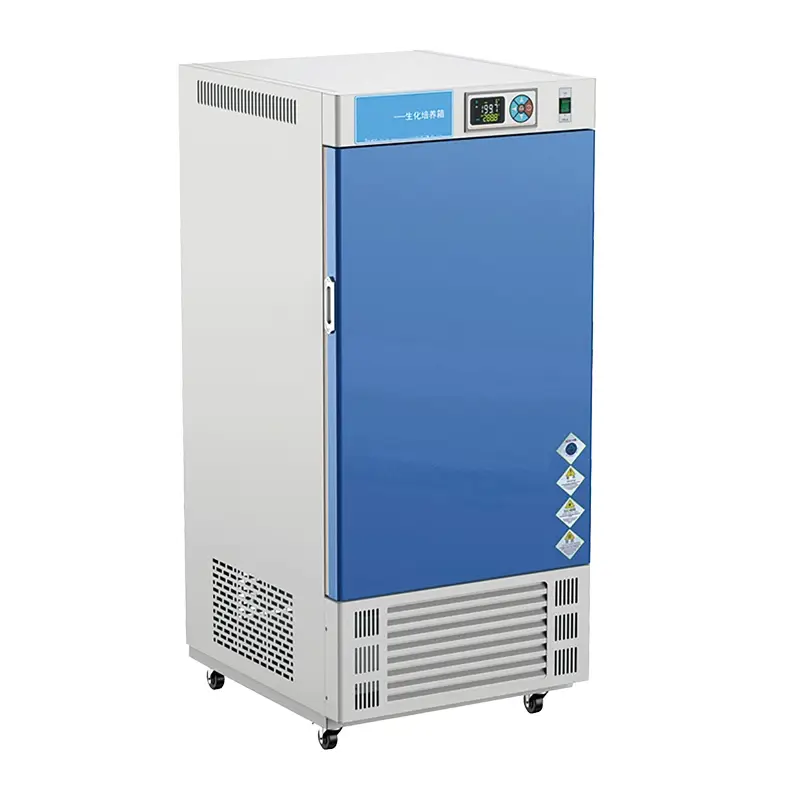

Name：Constant temperature and humidity chamber
Model：EJ-CTH100S
1. Product description:
The constant temperature & humidity chamber is equipped with precise control system of temperature and humidity, which provide various necessary environmental simulative conditions for industrial research and biotechnology test. Widely applied in sterile test and stability check-up of textile, pharmaceuticals, food processing, as well as test material, performance, packing and life time of industrial products.
2. Features:
2.1 Double door structure, built-in large wide Angle glass door, easy for users to observe samples without dead Angle.
2.2 Double greenhouse temperature control system, greatly improve the temperature uniformity in the chamber.
2.3 Refrigerating capacity intelligent control system, automatically adjust the compressor refrigeration power, and with cold reflux function, help the compressor Rapid cooling, prolong the life of the compressor.
2.4 Standard with large LCD display, multiple groups of data a screen display, menu type operation interface, easy to understand, easy to operate.
2.5 The mirror stainless steel inner bladder, four corners of the semi-arc design, easy to clean, the spacing of the shelves in the chamber is adjustable.
2.6 The use of international brand compressor, independent research and development of compressor cooling system, can effectively prolong the life of the compressor.
2.7 JAKEL tube flow circulating fan, unique design of air duct, to create a good air circulation convection, to ensure temperature uniformity.
2.8 PID control mode, temperature control precision fluctuation is small, with timing function, the maximum time set value of 99 hours 59 minutes.
2.9 Committed to the world environmental health initiative, the use of 134A fluorine free refrigerant, high efficiency, energy saving, environmental protection.
3. Configuration
3.1 The standard configuration
Tank: Stainless steel (ASTM304)
Internal: galvanized stainless steel shelf (100L to 150L: 2 pieces, 250L to 500L: 3 pieces)
Body: cold rolled steel plate forming spray plastic
Meter: large LCD color screen controller
Plug: optional
Installation: All models are equipped with lockable mobile casters (2 with lock, 2 directional)
3.2 Options
Embedded printer -- easy for customers to print data.
Independent temperature limit alarm system -- when the temperature exceeds the limit, the heating source will be forcibly stopped to ensure the safety of your laboratory.
RS485 interface and special software -- connect computer, export experimental data.
Test hole 25mm/50mm /100mm-- can be used to test the actual temperature of the working room.
Power Requirement: AC220V 50HZ/10A
Temperature Range: 0~65℃
Temperature Stability: high±0.5℃ low ±1.5℃
Temperature Stability: 0.1℃
Timing Range: 1~9999min
Humidity Range: 40~95%RH
Automated Defrosting: NO
Power Consumption: 1100W
Interior Dimension (W*D*H mm): 450*380*590
External Dimension (W*D*H mm): 580*665*1180
Volume: 100L
Shelves: 2pcs
Gross weight(KG): 85
Dry Cabinet Scope and Storage Reference:
| Relative Humidity | Suitable storage of items |
| 60%~50% | Paintings, antiques, paper money, old books, Fax paper, copy paper |
| 50%~40% | Camera, video cameras, lenses, microscopes, endoscopes, binoculars, magnetic tape, disks , records, film, negatives, positive film, musical instrument, stamps, furs, medicinal materials, tea , coffee, cigarette etc. |
| 40%~20% | Precision dies, measurement instruments, all electronic parts, pc boards, metallic powders, semiconductors, medical supplies etc. |
| 20%or less | Sample, standard measuring tool, seeds, pollen, seedlings etc. |
| 10%~20% | Electronic Components,IC,BGA,etc. |
| 10% or less | Particularly sensitive to humidity of materials, such as requiring a higher IC, BGA, etc. |
1. Can products be customized?
Yes, fully customizable per your specifications.
2. Accepted payment terms?
FOB, CIF, EXW, FCA, DDU, DAP and DDP.
